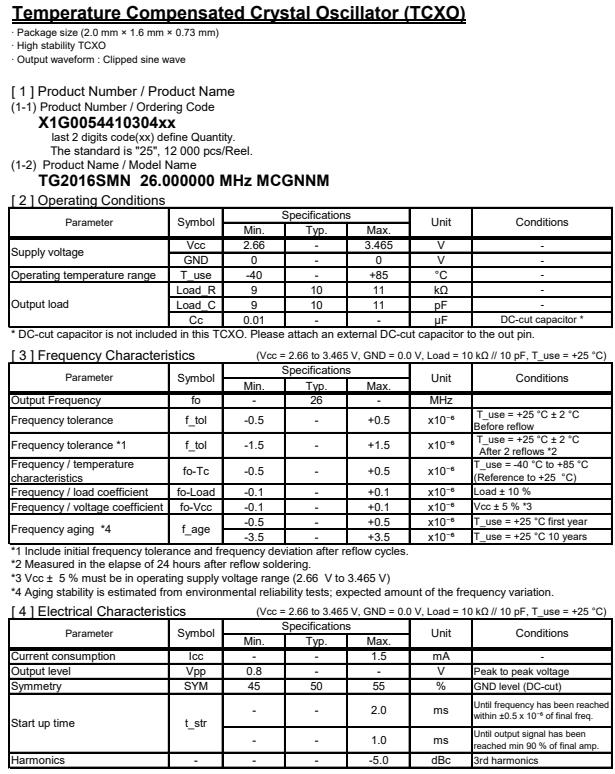

溫度補償晶體振蕩器編碼X1G005441030425常常用于Wi-Fi藍牙組合模塊，激烈的市場斗爭之中，愛普生公司依舊保持初心，憑著個人的能力，開發了許多優質的晶振產品，其中也包含生產這款超高性價比的有源晶振TG2016SMN，編碼X1G005441030425，頻率26.000000兆赫，輸出剪波正弦波，電源電壓2.66至3.46 V，電源電壓(類型)N/A V，尺寸(LxWxH)2.0 x 1.6 x 0.7 mm，操作溫度-40至+85°C，頻率公差+/- 1.5 ppm，TG2016SLN支持105°C和待機功能，使用愛普生開發和制造的IC和兆赫基本晶體。結合單密封結構微小的優點，尺寸小，高度低，壓力小，成型密封阻力小，SLN系列是物聯網和工業應用的理想選擇。應用領域：GNSS，無線通信裝置，LPWA, LTE, WiMAX, Wi-Fi藍牙組合模塊, W-LAN等領域。

Product Number	愛普生晶振	Frequency	LxWxH	Supply Voltage	F.Tol@25°C	Ope Temperature	Freq/Temp
X1G005441020625	TG2016SMN	38.400000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441020725	TG2016SMN	40.000000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441020825	TG2016SMN	16.000000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441021125	TG2016SMN	20.000000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441021225	TG2016SMN	24.000000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441021325	TG2016SMN	25.000000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441021425	TG2016SMN	27.000000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441021525	TG2016SMN	30.000000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441021625	TG2016SMN	48.000000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441022025	TG2016SMN	52.000000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441022125	TG2016SMN	27.600000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441030125	TG2016SMN	16.368000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441030225	TG2016SMN	16.369000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441030325	TG2016SMN	19.200000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441030425	TG2016SMN	26.000000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441030525	TG2016SMN	32.000000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441030625	TG2016SMN	38.400000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441030725	TG2016SMN	40.000000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441030825	TG2016SMN	16.000000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441031125	TG2016SMN	20.000000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm

溫度補償晶體振蕩器編碼X1G005441030425常常用于Wi-Fi藍牙組合模塊，EPSON愛普生晶振提供各種不同的MHz晶體單元，具有各種尺寸、廣泛的頻率和低 ESR。 愛普生晶體可用于汽車和工業級，并提供內置熱敏電阻。此外EPSON愛普生為射頻應用提供 SAW（表面聲波）諧振器和濾波器。 SAW設備以超過100MHz的頻率用于通信系統，例如汽車遠程無鑰匙進入 (RKE)。
